Nextcloud has a fantastic mail-app that can be used as a web interface for most e-mail providers. And of course, if you are running Nextcloud, you might want to host your own imap and smtp servers as well. In this blog post I will describe how you can set up and configure dovecot and postfix as redundant imap and smtp servers and how you can integrate them with Nextclouds app-password database so you get all user management for free and your users can have self service password management.
| Table of Contents |
|---|
Architectural overview
To get this working you will need a minimum of two servers, where you can run docker containers. You will also need the ability to configure two (sub) domains for use with your e-mail services. In this example we will set up imap.example.com and smtp.example.com on four servers, that means you should replace any instance of 'example.com' below with your own domain:
If you are so inclined, you cound of course consolidate this to only two servers, e.g.
We will use docker-compose to manage the containers.
You will also need some kind of loadbalancing, that can load balance on tcp ports to get high availability for this set up. One option is to use round robin dns or even have one of the servers be a hot standby that you can switch to by updating the dns record (make sure you have a short TTL set for your dns records in that case). I will not go in to a lot of details on how you can set up load balancing, but you should be able use your favourite solution for this.
The same thing is assumed for certificates, you need to have a certificate called /opt/dovecot/certs/imap.example.com/fullchain.pem and a key called /opt/dovecot/certs/imap.example.com/privkey.pem on the imap servers, and similarly a certificate called /opt/postfix/certs/smtp.example.com/fullchain.pem and a key called /opt/postfix/certs/smtp.example.com/privkey.pem on the smtp servers. I will not cover how to get them and how to distribute them to your server here, but I encourage you to look at certbot if you don't know where to go from there.
Companion docker containers
SUNET builds two container images from these repositories, that can be used with this guide:
These images can be pulled from:
Common configuration
This guide will assume you are running Debian 12 on your machines, but you should be able to adjust the commands here to any modern linux distro. At SUNET we use a rather fancy puppet setup to manage our servers, but I will describe installation commands using apt command line syntax below. In general you will need to be root for these commands, so either prefix with sudo or make sure you are running as the root user. The first thing we need is docker and docker-compose:
| Code Block | ||
|---|---|---|
| ||
# apt update && apt install docker.io docker-compose |
This needs to be done on all servers.
Dovecot
| Info |
|---|
This needs to be done on imap1.example.com and imap2.example.com. |
Next we will set up dovecot. Let's first create a directory structure on our host:
| Code Block | ||
|---|---|---|
| ||
# mkdir -p /opt/dovecot/{certs,config,mail,ssmtp} |
Next create the file /opt/dovecot/docker-compose.yml with the following content:
| Code Block | ||||
|---|---|---|---|---|
| ||||
version: "3.7" services: dovecot: image: docker.sunet.se/mail/dovecot:SUNET-1 volumes: - /opt/dovecot/ssmtp/ssmtp.conf:/etc/ssmtp/ssmtp.conf - /opt/dovecot/config:/etc/dovecot/ - /opt/dovecot/mail:/var/mail/ - /opt/dovecot/certs/:/certs command: - /usr/sbin/dovecot - -F ports: - "24:24" - "143:143" - 993:993 - 4190:4190 - 12345:12345 - 12346:12346 restart: always |
Next you will need some dovecot configuration:
| Code Block | ||||
|---|---|---|---|---|
| ||||
mail_home=/srv/mail/%Lu
mail_location=maildir:/var/mail/vhosts/%d/%n/
mail_privileged_group = mail
log_path=/dev/stdout
first_valid_uid=8
postmaster_address = postmaster@example.com
sendmail_path = /usr/sbin/ssmtp
namespace inbox {
inbox = yes
separator = /
mailbox Drafts {
special_use = \Drafts
auto = subscribe
}
mailbox Junk {
special_use = \Junk
auto = subscribe
}
mailbox Trash {
special_use = \Trash
auto = subscribe
}
mailbox Sent {
special_use = \Sent
auto = subscribe
}
mailbox "Sent Messages" {
special_use = \Sent
auto = subscribe
}
}
protocols = imap lmtp sieve
service lmtp {
inet_listener lmtp {
address = 0.0.0.0 ::
port = 24
}
}
mail_plugins = mail_plugins notify replication
protocol lmtp {
mail_plugins = mail_plugins sieve
}
protocol sieve {
mail_debug = yes
managesieve_max_line_length = 65536
}
service managesieve-login {
inet_listener sieve {
port = 4190
ssl = yes
}
service_count = 1
}
service managesieve {
process_limit = 256
}
plugin {
sieve = ~/.dovecot.sieve
sieve_global_path = /var/lib/dovecot/sieve/default.sieve
sieve_dir = ~/sieve
sieve_global_dir = /var/lib/dovecot/sieve/
sieve_extensions = +vacation-seconds
sieve_global_extensions = +vnd.dovecot.pipe
sieve_pipe_bin_dir = /etc/dovecot/sieve
sieve_plugins = sieve_imapsieve sieve_extprograms
sieve_vacation_default_period = 7d
sieve_vacation_max_period = 30d
sieve_vacation_min_period = 1d
}
auth_mechanisms = plain login
auth_username_format = %n
passdb {
args = password=<a secret you need for nextcloud goes here> allow_nets=<a comma separated list of your nextcloud servers goes here>
driver = static
}
passdb {
driver = lua
args = file=/etc/dovecot/nextcloud-auth.lua
}
userdb {
driver = sql
args = /etc/dovecot/dovecot-sql.conf
}
service auth {
inet_listener {
port = 12346
}
}
auth_debug = yes
auth_verbose = yes
ssl=yes
ssl_cert=</certs/imap.example.com/fullchain.pem
ssl_key=</certs/imap.example.com/privkey.pem
doveadm_password = <a shared secret for replicating between the two servers goes here>
service replicator {
process_min_avail = 1
}
service aggregator {
fifo_listener replication-notify-fifo {
user = mail
}
unix_listener replication-notify {
user = mail
}
}
service doveadm {
inet_listener {
port = 12345
}
}
plugin {
mail_replica = tcp:<host name of the partner server goes here>:12345
} |
| Code Block | ||
|---|---|---|
| ||
driver = mysql connect = host=<database hostname goes here> dbname=<nextcloud database name goes here> user=<nextcloud db user> password=<nextcloud db password> user_query = SELECT '%n' as username, 'mail' as uid, 'mail' as gid, '/var/mail/vhosts/example.com/%n' as home, 'maildir:/var/mail/vhosts/example.com/%n/' as mail; iterate_query = SELECT UNIQUE(REPLACE(value, '@example.com', '')) AS username, 'example.com' as domain FROM oc_accounts_data WHERE name = 'email' AND value LIKE '%%example.com'; |
The lua script below will do the actual validation of app passwords, but in stead of implementing sha512 in lua, we will just call out to php and do the exact same thing Nextcloud does when validating app passwords.
| Warning |
|---|
This is the one place where you can not have multiple database servers configured, so if you want High Availabilty for this part, you will need to look in to proxysql. You could for instance run proxysql locally in docker on the imap server, and then connect to that container from the lua script to gain high availability. |
| Code Block | ||
|---|---|---|
| ||
function auth_passdb_lookup(req)
-- Get the hash out using php
local salt = "<the salt from config.php>"
local command = "php -r " .. "'print(hash(" .. '"sha512","' .. req.password .. salt .. '"' .. "));'"
local handle = assert(io.popen(command))
local hash = handle:read("*a")
handle:close()
-- Get the stored app passwords from Nextcloud
local db = '<nextcloud database name goes here>'
local user = '<nextcloud db user>'
local password = '<nextcloud db password>'
local db_server = '<database hostname goes here>'
local mysql = require "luasql.mysql"
-- Adjust the query below so that you can find your users if the don't have usernames like user@example.com
local query = "SELECT token FROM oc_authtoken where uid = '" .. req.user .. "@example.com'"
local env = assert(mysql.mysql())
local conn = assert(env:connect(db, user, password, db_server))
local cur = assert(conn:execute(query))
local row = cur:fetch({}, "a")
while row do
local token = row.token
if token == hash then
return dovecot.auth.PASSDB_RESULT_OK, "password=" .. req.password
end
row = cur:fetch(row, "a")
end
return dovecot.auth.PASSDB_RESULT_USER_UNKNOWN, "no such user"
end |
| Code Block | ||
|---|---|---|
| ||
root=postmaster mailhub=smtp.example.com:25 rewriteDomain=example.com hostname=<host name of current imap server> |
| Note |
|---|
The configuration in <brackets> in the configuration needs to be replaced with actual values:
|
Postfix
| Info |
|---|
This needs to be done on smtp1.example.com and smtp2.example.com. |
First create the required directory structure:
| Code Block |
|---|
# mkdir -p /opt/postfix/{certs,config} |
Now create /opt/postfix/docker-compose.yml
| Code Block | ||||
|---|---|---|---|---|
| ||||
version: "3.7"
services:
postfix:
image: docker.sunet.se/mail/postfix:SUNET-1
volumes:
- /opt/postfix/config:/config
- /opt/postfix/certs/:/certs
command:
- /start.sh
ports:
- "25:25"
- 587:587
restart: always |
Then create the /opt/postfix/config/main.cf file:
| Code Block |
|---|
maillog_file = /dev/stdout
smtpd_banner = $myhostname ESMTP $mail_name (Debian/GNU)
biff = no
append_dot_mydomain = no
readme_directory = no
compatibility_level = 3.6
smtpd_tls_cert_file=/certs/smtp.example.com/fullchain.pem
smtpd_tls_key_file=/certs/smtp.example.com/privkey.pem
smtpd_tls_security_level=may
smtp_tls_CApath=/etc/ssl/certs
smtp_tls_security_level=may
smtp_tls_session_cache_database = btree:${data_directory}/smtp_scache
smtpd_relay_restrictions = permit_mynetworks permit_sasl_authenticated defer_unauth_destination
smtpd_client_restrictions = permit_mynetworks
myhostname = <current smtp hostname goes here>
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
virtual_mailbox_domains = mysql:/config/mysql-virtual-mailbox-domains.cf
virtual_mailbox_maps = mysql:/config/mysql-virtual-mailbox-maps.cf
mydestination = $myhostname, localhost.localdomain, localhost
mynetworks = 127.0.0.0/8 [::ffff:127.0.0.0]/104 [::1]/128 <ip address of imap servers goes here>
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
inet_protocols = all
relayhost = <a comma seprated list of relay servers>
smtpd_sasl_type = dovecot
smtpd_sasl_path = inet:imap.example.com:12346
smtpd_sasl_auth_enable = yes
virtual_transport = lmtp:imap.example.com:24 |
Add the /opt/postfix/config/master.cf file
| Code Block | ||
|---|---|---|
| ||
smtp inet n - n - - smtpd
submission inet n - n - - smtpd
-o syslog_name=postfix/submission
-o smtpd_tls_security_level=encrypt
-o smtpd_sasl_auth_enable=yes
-o smtpd_tls_auth_only=yes
-o smtpd_reject_unlisted_recipient=no
pickup unix n - n 60 1 pickup
cleanup unix n - n - 0 cleanup
qmgr unix n - n 300 1 qmgr
tlsmgr unix - - n 1000? 1 tlsmgr
rewrite unix - - n - - trivial-rewrite
bounce unix - - n - 0 bounce
defer unix - - n - 0 bounce
trace unix - - n - 0 bounce
verify unix - - n - 1 verify
flush unix n - n 1000? 0 flush
proxymap unix - - n - - proxymap
proxywrite unix - - n - 1 proxymap
smtp unix - - n - - smtp
relay unix - - n - - smtp
-o syslog_name=postfix/$service_name
showq unix n - n - - showq
error unix - - n - - error
retry unix - - n - - error
discard unix - - n - - discard
local unix - n n - - local
virtual unix - n n - - virtual
lmtp unix - - n - - lmtp
anvil unix - - n - 1 anvil
scache unix - - n - 1 scache
postlog unix-dgram n - n - 1 postlogd
maildrop unix - n n - - pipe
flags=DRXhu user=vmail argv=/usr/bin/maildrop -d ${recipient}
uucp unix - n n - - pipe
flags=Fqhu user=uucp argv=uux -r -n -z -a$sender - $nexthop!rmail ($recipient)
ifmail unix - n n - - pipe
flags=F user=ftn argv=/usr/lib/ifmail/ifmail -r $nexthop ($recipient)
bsmtp unix - n n - - pipe
flags=Fq. user=bsmtp argv=/usr/lib/bsmtp/bsmtp -t$nexthop -f$sender $recipient
scalemail-backend unix - n n - 2 pipe
flags=R user=scalemail argv=/usr/lib/scalemail/bin/scalemail-store ${nexthop} ${user} ${extension}
mailman unix - n n - - pipe
flags=FRX user=list argv=/usr/lib/mailman/bin/postfix-to-mailman.py ${nexthop} ${user} |
Add the/opt/postfix/config/mysql-virtual-mailbox-domains.cf file
| Code Block | ||
|---|---|---|
| ||
user = <nextcloud db user> password = <nextcloud db password> hosts = <nextcloud db hosts> dbname = <nextcloud db name> query = SELECT 1 WHERE 'example.com' = '%s' |
| Code Block | ||
|---|---|---|
| ||
user = <nextcloud db user> password = <nextcloud db password> hosts = <nextcloud db hosts> dbname = <nextcloud db name> query = SELECT UNIQUE(1) FROM oc_accounts_data WHERE value='%s' and name = 'email' |
| Note |
|---|
The configuration in <brackets> in the configuration needs to be replaced with actual values:
|
Using Nextcloud mail with SSO-accounts
It is currently not possible to use the Nextcloud mail app with accounts that have logged in using Single Sign On. That is because Nextcloud expects the Nextcloud password to be used for authenticating against the email server (unless you have a gmail or outlook account with ouath set up). However, that is about to change. I have written a PR for the Nextcloud mail app that allows you set a "master password" for the provisioned accounts, when that PR is merged it will be possible to use the Nextcloud mail app with the configuration in this guide.
Configuring Nextcloud

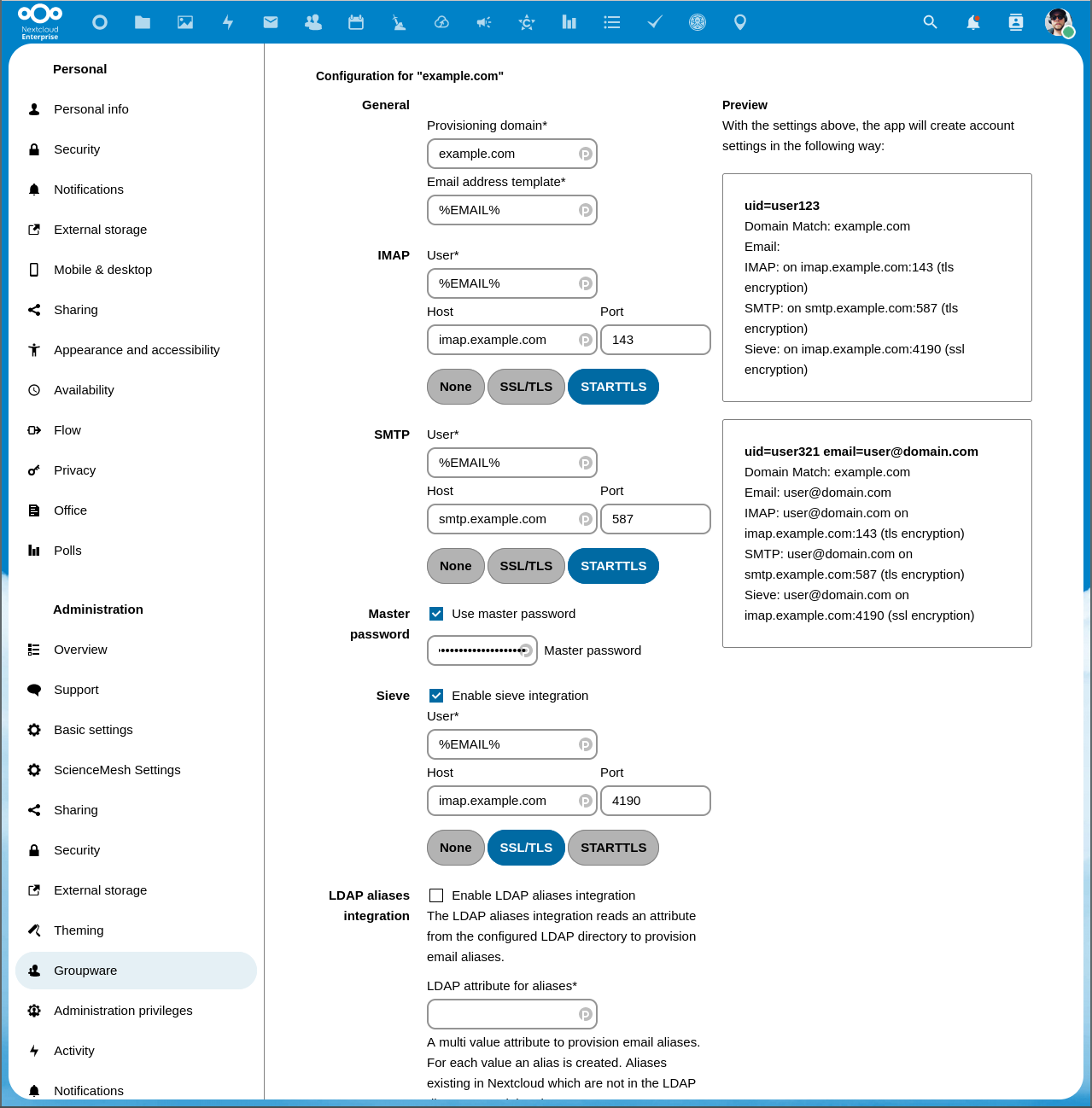

Make sure you enable the mail app in Nextcloud , as an administrator you should then be able to create a "provisioning" in Admin settings → Groupware. Note that in this screen shot we are running the patched version that can use master passwords.
